Elmo Rietschle dry running rotary vane vacuum pumps

Dry running Rotary Vane Pressure Vacuum pumps

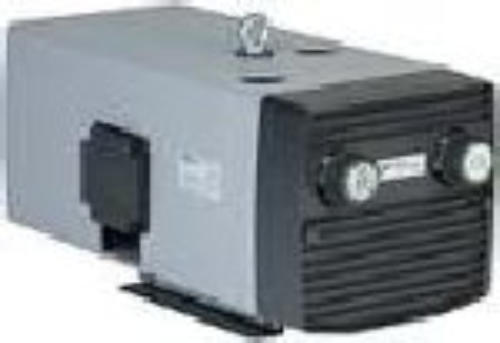

Pressure-vacuum pumps V-KTN 16, 26, 41

Dry running

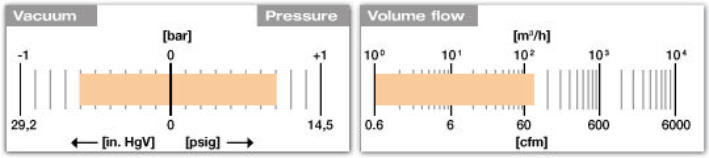

Volume flow 15.7 to 51 m³/hr 9.2 to 30 cfm

V-KTN

Integral suction and air blast filters. Sound cover reduces noise level, enhances intensive cooling and protects operator from touching hot surfaces. Flexible connection possible, low pulsation, easy to operate, maintain and install. Capacities ranging from 15.7 to 51 m³/hr (9.2 to 30 cfm). Pressure/vacuum up to ± 0.6 bar. With compressed air after-cooler. Capacities ranging from 17.0 to 42.0 m³/hr (10.0 to 24.7 cfm), ultimate vacuum 150 mbar (abs.).

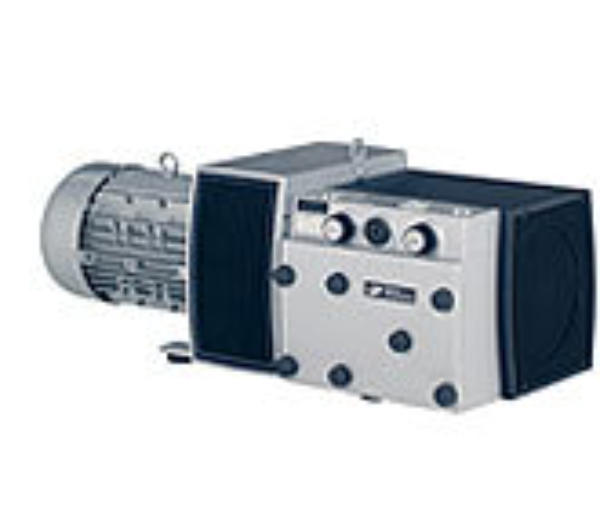

Vacuum pumps V-KTA 60, 80

Dry running

Volume flow 50 to 80 m³/hr 29.4 to 47 cfm

V-KTA

Dry running rotary vane pressure vacuum pumps with bearings on both sides of the rotor. Capacities from 50 to 139 m³/hr (29.4 to 81.8 cfm). Vacuum up to - 0.6 bar and pressure up to + 0.7 bar. Flexibility to alter vacuum and compressed air capacities to suit individual applications: Version /1: standard vacuum and pressure capacity. Version /2: maximum compressed air capacity. Version /3: maximum vacuum capacity High efficiency and silent operation. Sound cover allows a ducted cooling air outlet either from one side only or from both sides. Easy servicing and operation.

V-KTR Datasheet

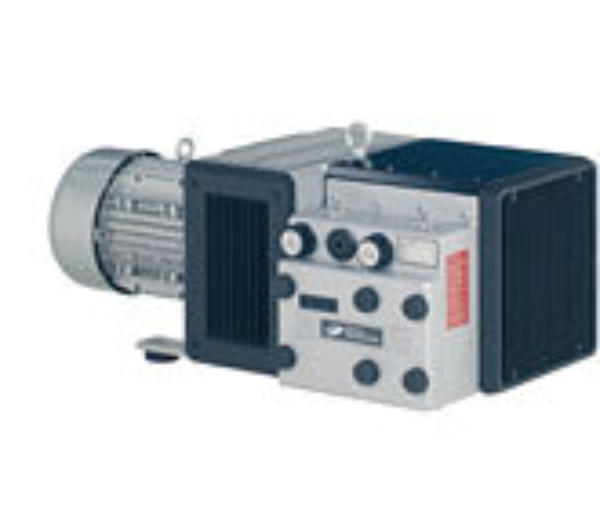

Vacuum pumps V-VTR 100, 140

Dry running

Volume flow 100 to 160 m³/hr

V-VTR

Dry running rotary vane pressure vacuum pumps with bearings on both sides of the rotor. Flange motor with torsionally flexible coupling. Capacities from 100 to 160 m³/hr (58.8 to 94.1 cfm), vacuum up to - 0.6 bar and pressure up to + 0.6 bar. High efficiency and silent operation. Sound cover allows a ducted cooling air outlet. Easy servicing and operation.
