Elmo Rietschle dry running rotary vane vacuum pumps

V-VTE Datasheet

V-VTN Datasheet

V-VTA Datasheet

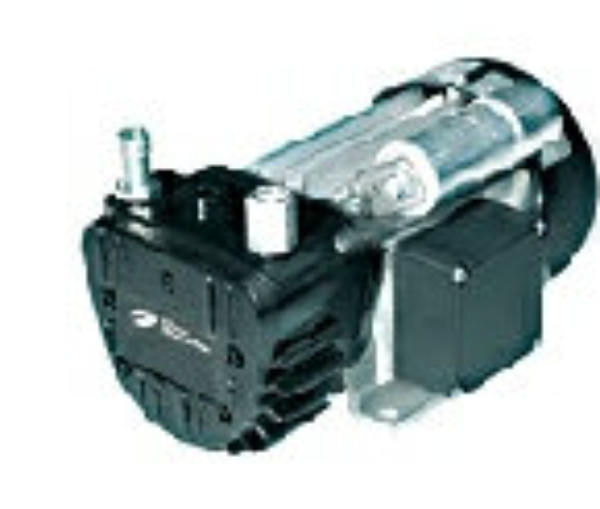

Vacuum pumps V-VTE 3, 6, 8, 10

Dry running

Volume flow 3,5 to 12m³/hr 2.1 to 7.1 cfm

V-VTE

Small, dry running rotary vane vacuum pump with integral suction air filter. Compact design, easy to install. Very low noise level and corrosion-proof rotors. Hose connection and exhaust silencer as standard. Capacities ranging from 3.5 to 12 m³/hr (2.1 to 7.1 cfm). Ultimate vacuum 150 mbar (abs.).

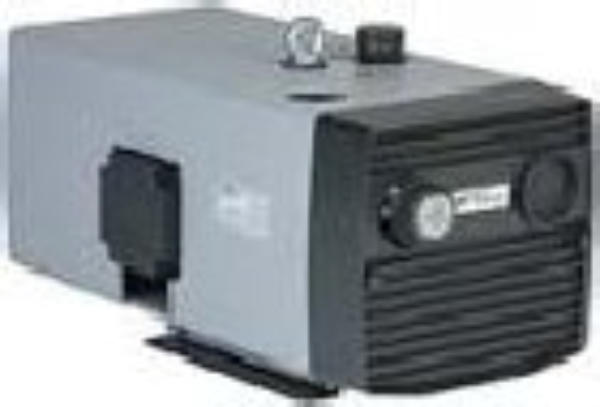

Vacuum pumps V-VTN 16, 26, 41

Dry running

Volume flow 17 to 42 m³/hr 10.0 to 24.7 cfm

V-VTN

Dry running rotary vane vacuum pump with integral suction air filter. Sound cover reduces noise level, enhances cooling and protects operator from touching hot surfaces. Flexible connections possible, low pulsation, easy to operate, maintain and install. Capacities ranging from 17.0 to 42.0 m³/hr (10.0 to 24.7 cfm), ultimate vacuum 150 mbar (abs.).

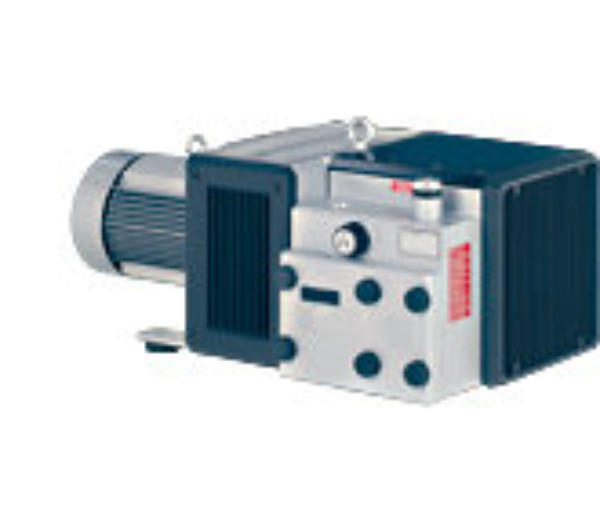

Vacuum pumps V-VTA 60, 80

Dry running

Volume flow 55 to 80 m³/hr 32.4 to 24.7 cfm

V-VTA

Dry running rotary vane vacuum pump with bearings on both sides of the rotor. Capacities from 55 to 80m³/hr (32.4 to 90 cfm). Ultimate vacuum 150 mbar (abs.). High efficiency and silent operation. Sound cover allows a ducted cooling. Air outlet either from one side only or from both sides. Easy servicing and operation.

V-VTR Datasheet

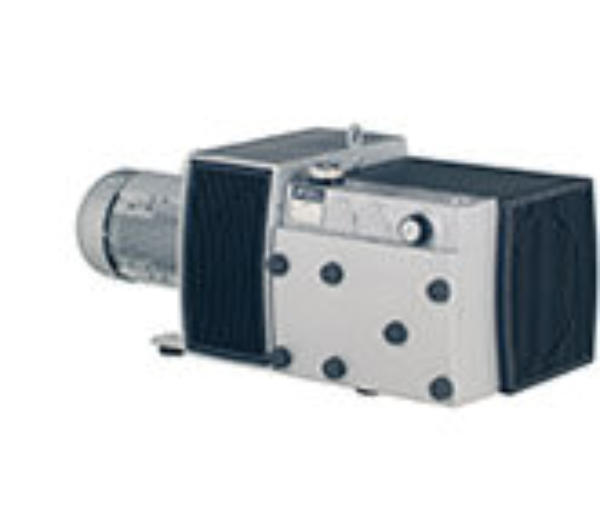

Vacuum pumps V-VTR 100, 140

Dry running

Volume flow 100 to 155 m³/hr 58.8 to 91.2 cfm

V-VTR

Dry running rotary vane vacuum pump with bearings on both sides of the rotor. Flange motor with torsionally flexible coupling. Capacities from 100 to 155 m³/hr (58.8 to 91.2).Ultimate vacuum 150 mbar (abs.). High efficiency and silent operation. Sound cover allows a ducted cooling air outlet. Easy servicing and operation.
